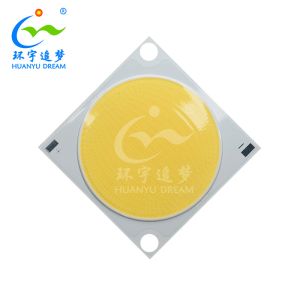

High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen

Shenzhen Huanyu Dream Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen from wholesalers

    Buy cheap High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen from wholesalers
    • Buy cheap High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen from wholesalers
    • Buy cheap High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen from wholesalers
    • Buy cheap High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen from wholesalers

    High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen

    Ask Lasest Price
    Brand Name : HuanYu Dream
    Model Number : HY02823-57D3-1219B
    Certification : Rohs
    Price : Negotiable
    Payment Terms : T/T, Paypal,Ali Pay
    Supply Ability : 30000 units per day
    Delivery Time : 10-15 Work Days
    • Product Details
    • Company Profile

    High Power LED COB Chip 50W 100W 300W 500W High CRI / High Lumen

    High power 50W 100W 300W 500W COB LED Chip High CRI and High Lumen


    • Studio COB High Current & Power Density
    • High Luminous Efficiency and High Power
    • Wide Range of LEDS diameters and lumen outputs
    • Various package size are available 1311 1917 2823 3834 4040 5047 6055.
    • Quality light with Super high CRI, Max. Up to 98Ra.
    • Wide CCT options 1800K-25000K
    • Strict Chip Selection to maintain color consistency (Mac Adam 3 steps, 4 steps and 5 steps or customer defined binning X Y Coordinates range)
    • High Reliability and Stability
    • Pure gold wire bonding chips in circular array
    • High quality Aluminum or Copper substrate applied


    High Power COB LED Chips Specifications


    SizeLesPowerVoltageCurrentCCTCRI
    28*28mmφ25mm100W36-39V2800mA2700K-7000KCri:80-98
    80W2200mA
    48-60W1200-1500mA
    42-48W1050-1200mA
    36-42W900-1050mA
    30-36W750-900mA
    24-30W600-750mA
    38*38mmφ34mm300W54-57V5700mA2700K-7000KCri:80-98
    200W3700mA
    42*50mmφ35mm52-56V3800mA2700K-7000KCri:80-98
    50*50mmφ47mm500W54-57V7200mA2700K-7000KCri:80-98
    500W10000mA

    FAQ

    Q1. Can I have a sample order for led light?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


    Q2. What about the lead time?

    A:Sample needs 1-3 days, mass production time needs 3-7 days according to the order quantity .


    Q3. Do you have any MOQ limit for led light order?What's the Payment way ?

    A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.


    Q5. How to proceed an order for led light?

    A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places


    Q6. Is it OK to print my logo on led light product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 3 years warranty to our products.


    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new.
